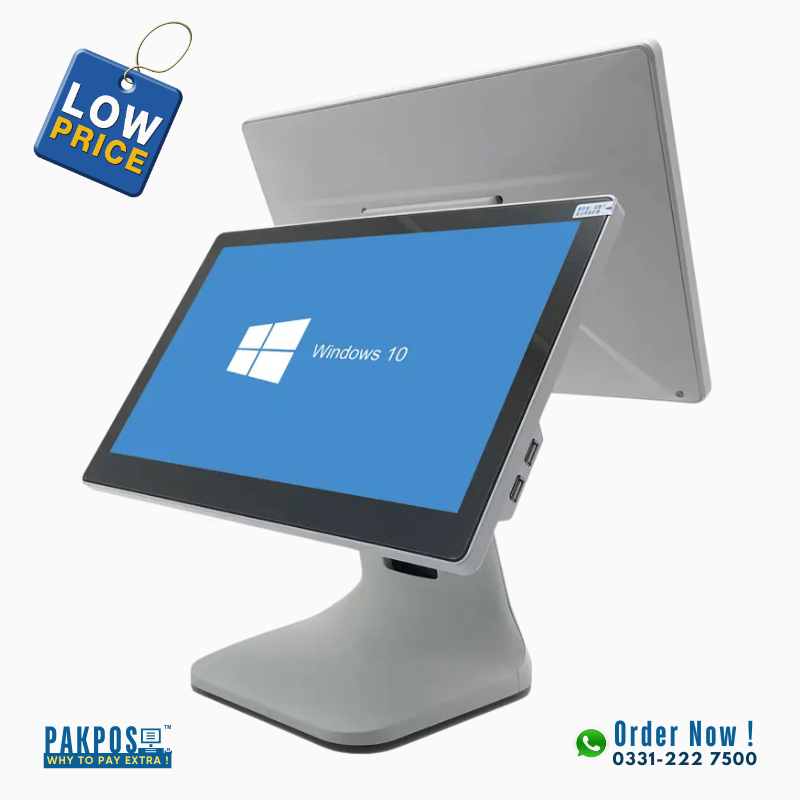

All in One Touch Screen POS System

Model SureTouch Pro STP15

Main Technical Parameters

Display Area 15”

Display Resolution 1024*768

Brightness 250cd/M2

Color Resolution 16.7M

Contrast Ratio 600:1

Touch Technology SureTouch 5-wire Resistive Touch Screen

System Parameters

Motherboard Mini-ITX Motherboard

CPU Intel 1037 Celeron Dual Core (1.86 GHz, 1M Cache)

RAM 2G DDR3-1333MHz RAM

Chipset NM 10

Hard Disk 1xSSD-32G

SATA 1 x SATA (Internal)

Serial Port 3 x COM with Power Selected 5/12V (COM 1/3/5), Selected by Jumper; 1 x COM

USB Port 6 x USB 2.0 (External); 2x USB 2.0 (Internal, reserved for touch screen, MSR)

PS/2 Port 2x mini-DIN-6 port for PS/2 Keyboard/Mouse

LAN Port 1 x RJ-45, Giga LAN

VGA Port 1 x DB-15, Female

Audio Jack 1 x Line Out, 1 x MIC In, 1 x Internal Speaker

DC Out Optional:1 x +12VDC Jack (Customer Display or 2nd Display)

Work Condition

Operation Temperature 0~40°C

Storage Temperature -20~60°C

Operation Humidity 20~85%

Others

Power Input 100-240VAC ~ 50~60HZ 1.5A

Power

Output 12VDC 5A MAX

Installation Ways Desktop / Wall Mounting (VESA holes)

TiltingAngle 35-90 Degree

Weight (N.W / G.W) 6.65KG/8.5KG

Outline Dimension 425mm*265mm*405mm (W*D*H)

without Power Output (COM 1), COM2 is for Customer Display
